Preview- 3D renderings of Montrose Green

We recently generated several 3D renderings of Montrose Green in order to help better illustrate how the house is put together and generally how it works. We are pretty excited about how they're coming along. We still need to add some notes to the drawings to help explain them, but we figured we would go ahead and post the progress images.

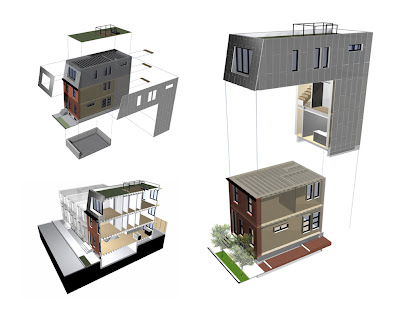

The rendering on the right shows the extent of the original rowhome (below) and how it relates to the new addition (floating above). You can see that we have added a significant amount of square footage to the house...we basically doubled its size. This rendering also shows the 4' wide alley, or easement, next to the house that we paved with reclaimed brick from the old facade as well as the extent of the stormwater planter out front (in green).

The rendering on the top left indicates the new elements that make up the building skin (i.e. the green roof, the third floor metal mansard roof, the fiber-cement panels at the third floor and rear addition, and the sun shades at the south facade.) In the rendering, these elements are pulled away from the house in order to show their location relative to the overall design.

The rendering at the bottom left is a building section cut through the center of the house. The ultimate intention for this drawing is to show how all the 'systems' in the house work (i.e. passive and active ventilation, daylighting, HVAC, water management, etc.

Many thanks to our friend and coworker, Justin, for taking the time to create these images.
